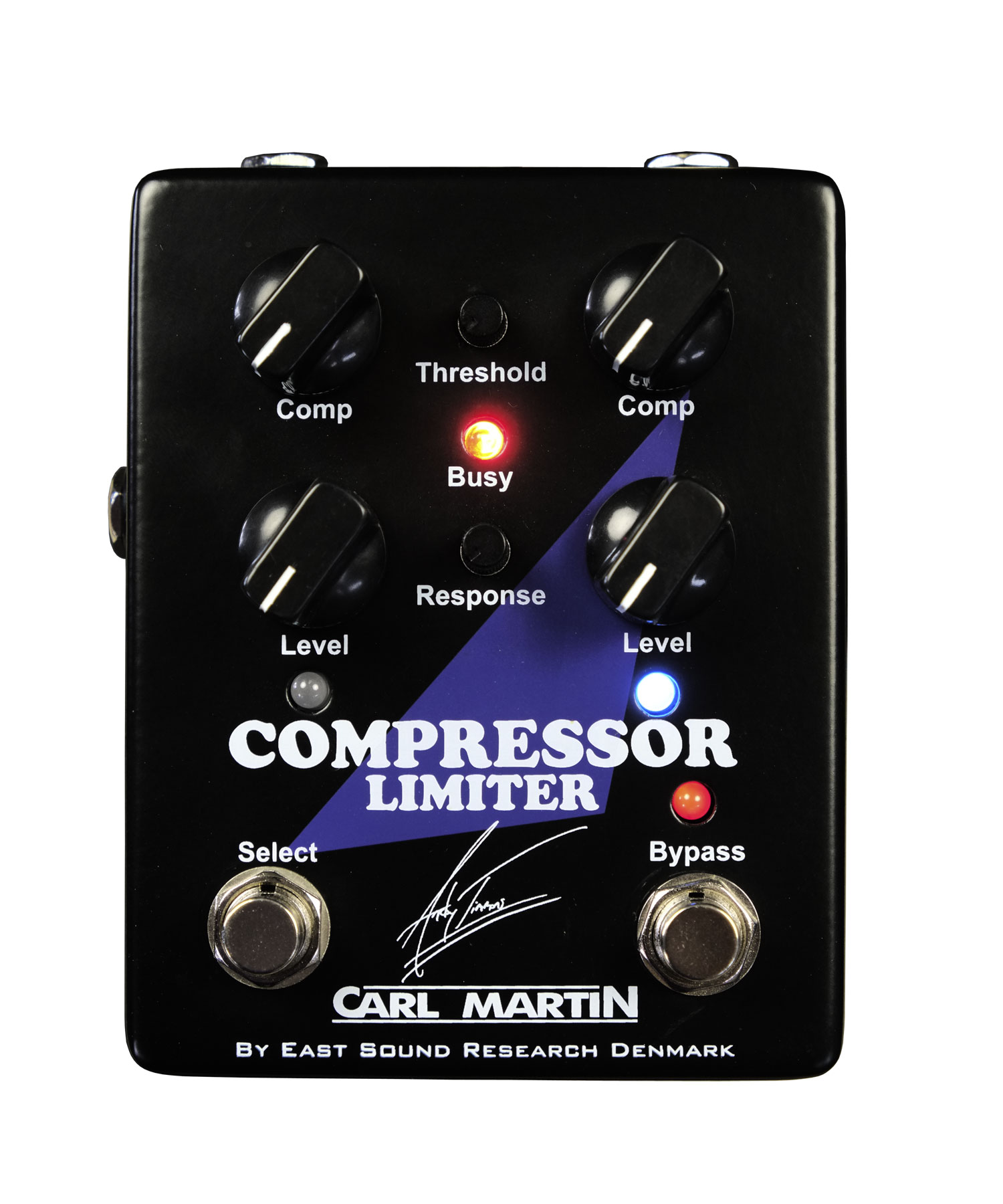

The Carl Martin Andy Timmons Signature Compressor/Limiter!
Just like the Carl Martin Compressor/Limiter, we believe this unit
to be the most musically useful guitar dynamics processor
on the market.
This pedal has been developed in corporation with Andy Timmons
to create a user-friendly yet versatile compressor/limiter with
its two presets.
Andy Timmons, long-time user and fan of the Carl Martin Compressor/Limiter,
suggested to Carl to create a Compressor/Limiter with two presets,
so that he had a preset for more subtle rhythm parts,
and a preset with more hard compression and sustain for other parts
as solos without having to take up real-estate on the board for
two Compressor/Limiters.
The result is a two-preset option for Compression Rate and Level.
In order to save knobs and to be as user-friendly as possible,
the Threshold and Response settings are fixed for both presets,
leaving the pedal with only six knobs, the Threshold and Response
being 6mm miniature knobs.
As a useful extra feature we incorporated a ¼” jack for remote
switching the presets (Latching).
As something new, the Carl Martin Andy Timmons Signature Compressor/Limiter
incorporates the newly developed DC/DC converter circuitry.
This enables us to run the pedal with +-12V internally, which is necessary
in order to maintain the same sonic quality and headroom as on the “old”
Compressor/Limiter using a regular 9V DC 200mA power supply.
The Carl Martin Andy Timmons Signature Compressor/Limiter has been
developed to incorporate the same features, sonic clarity, quietness,
and performance of the best studio compressor/limiters.
Spend a little time with us here in the manual and you can learn some
of the basics of compression and limiting, and how to get the most out
of your pedal.
Specifications
Input: 1M Ohm
Output: 200 Ohm
S/N Ratio: 105 dB (clean out)
THD distortion: 0,05%
Threshold Range: 60 dB
Compression Range: from 1:1 to 1:00
Responce Range:from 125 mS to 12,5 mS
Gain Range. +-20 dB
Dimensions: 120 (W) x 95 (D) x 56 (H) mm
Weight: 420g
